Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HJY
  • Model Number: HJY-DIS-RGB-O-P10
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 10mm
  • Screen Dimension: Customized
  • Item: LED commercial advertising screens
  • Brightness: 6500cd/sqm
  • Pixel density: 10000dots/m2
  • LED type: SMD3535 (3in1)
  • Driving method: 1/4 Scan
  • LED chip: Epistar
  • Certificate: CE FCC
  • Application: led display advertising
  • Life span: 100000hours
  • Warranty: 2 Years

Packaging & Delivery

Packaging Details wooden case or flight case LED commercial advertising screens
Delivery Time within 15-20days after receiving deposit
Product Description

Pixel pitch(mm) 10

Pixel density (dots/sqm) 10000

LED type DIP 346

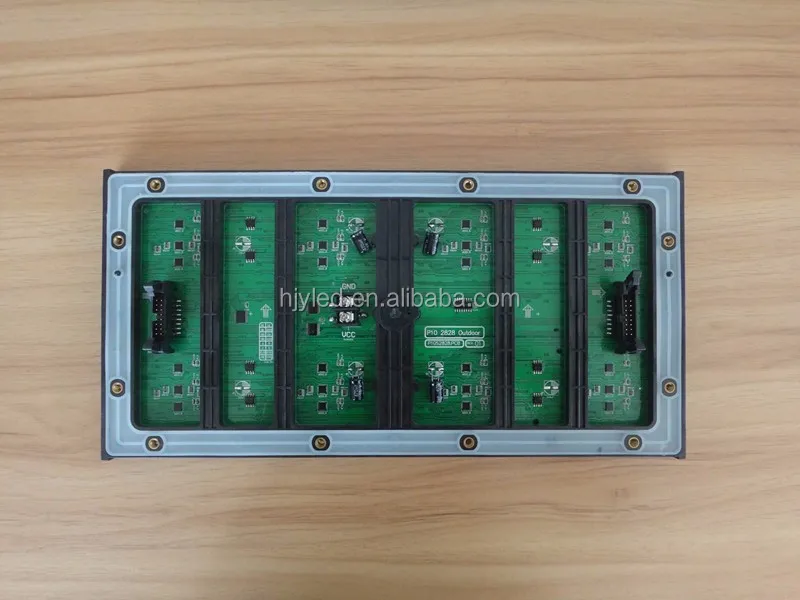

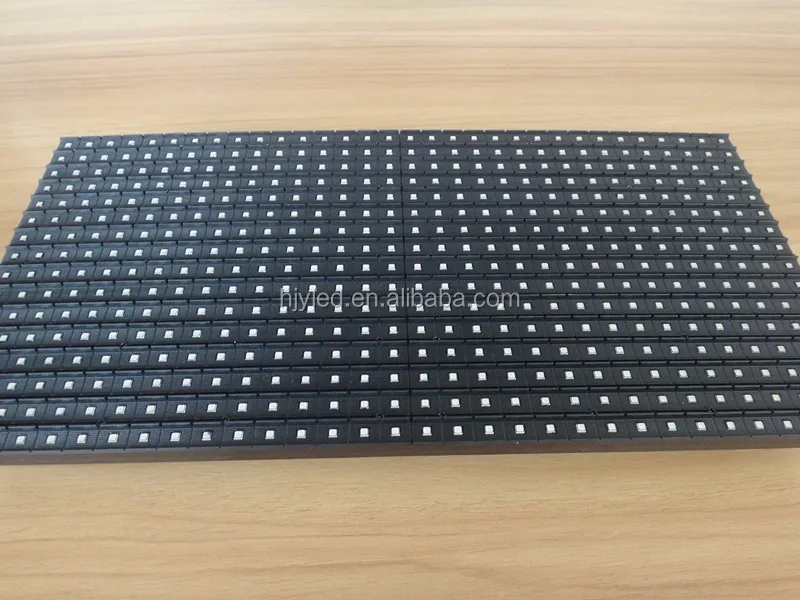

Module size(mm) W 320×h160

Pixel composing 1R1G1B

 screen size(mm) based on customer need

module Resolution (nits) W 32×h16

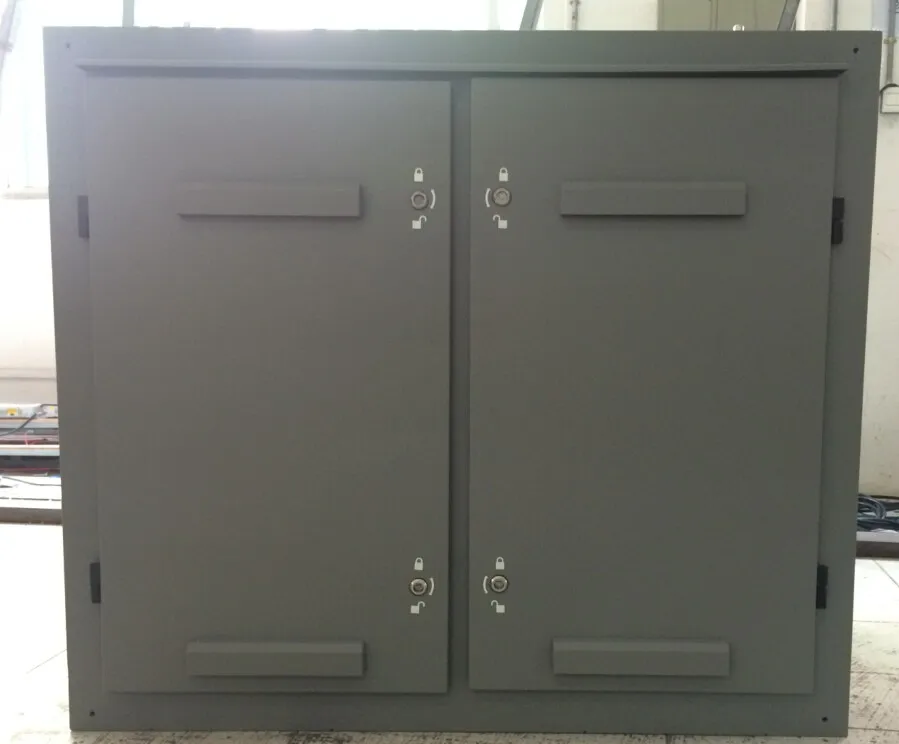

Cabinet structure Water-proof

installation fixed on the back

screen material iron aluminum

The way the cascade Aviation head

Protect degree IP65 front ,IP54 rear

Viewing distance(m) 7~105

brightness(cd/sqm) 7000 cd/sqm or 7000 nits

Power consumption (w/sqm) 34 max

Driving IC 1/4 scan SL 16739P

Refresh rate(HZ) ≥2000

Display ratio (suggest) 4:3/16:9

Viewing angel(c) H130 V65

System working voltage 88-132VAC176-264VAC 47-63HZ

Image adjustment contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc

Image processing Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc

Brightness uniformity The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9

Gray 65536

Color temperature/contrast Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need

Transmitting Distance The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers

Input Signal RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION

Control System PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer

Average No Failure Time 5000 hours

Life span 100,000 hours

Out-of Control rate 0.0001

To floor drain current Less than 3.5MA

Control system Synchronized

Operating Environment Temperature -20°C—65°C Optional





Related Products





Our Company

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

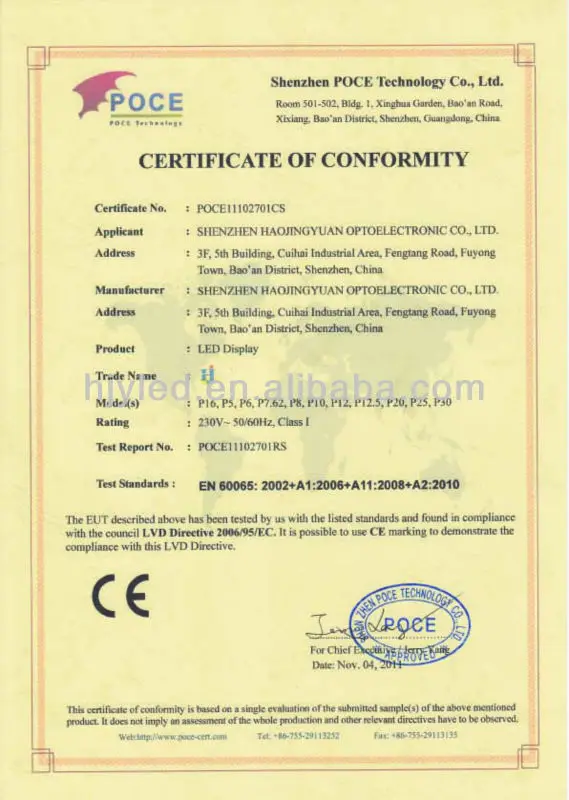

Certifications
Packing & Delivery

Packing

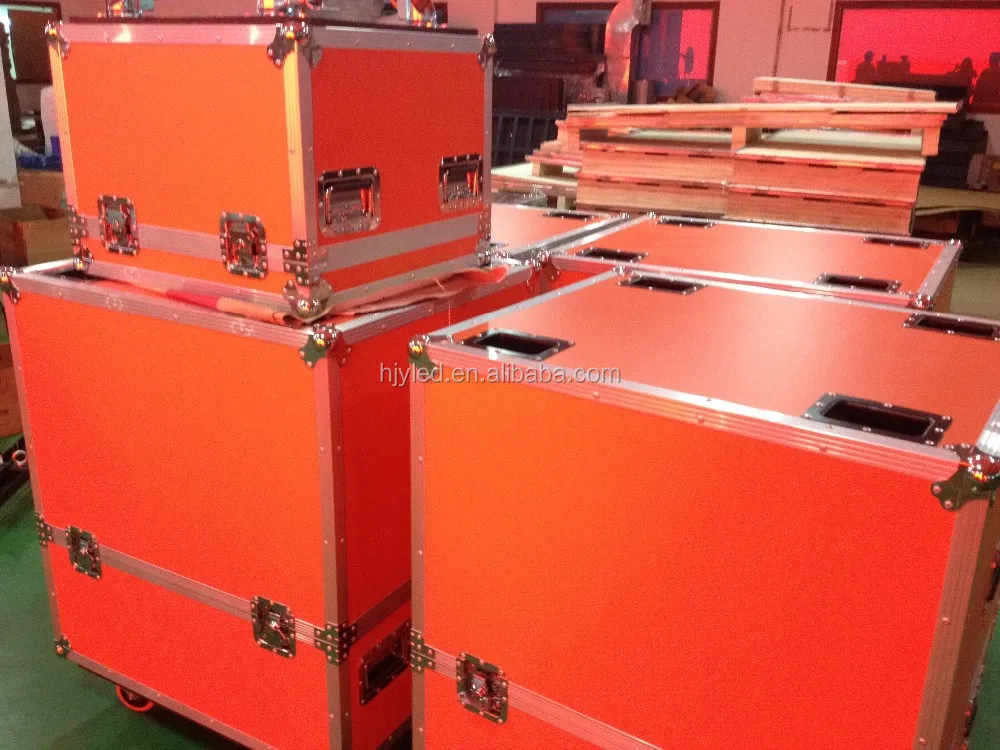

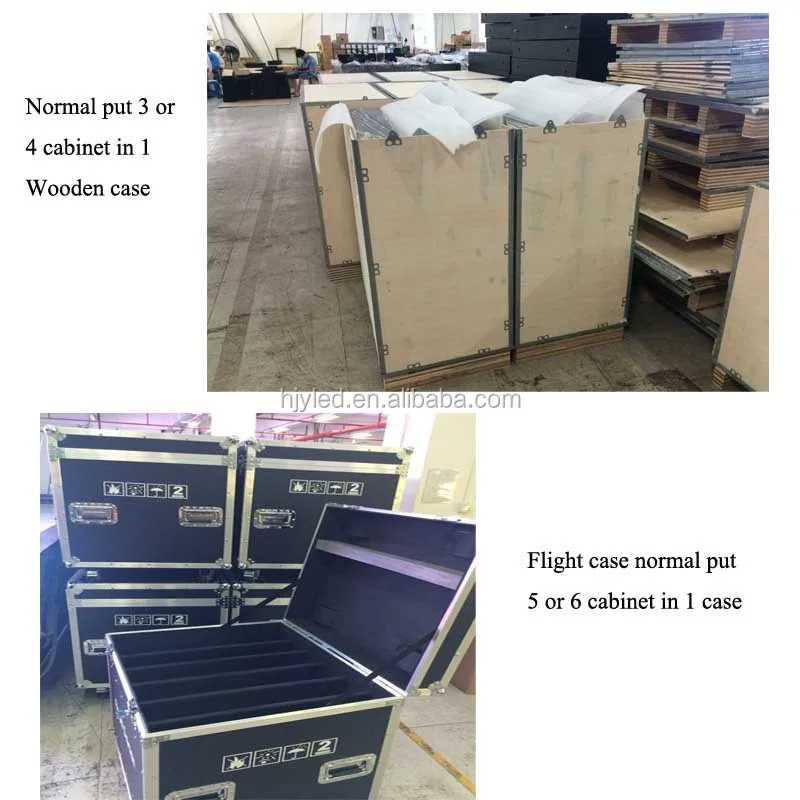

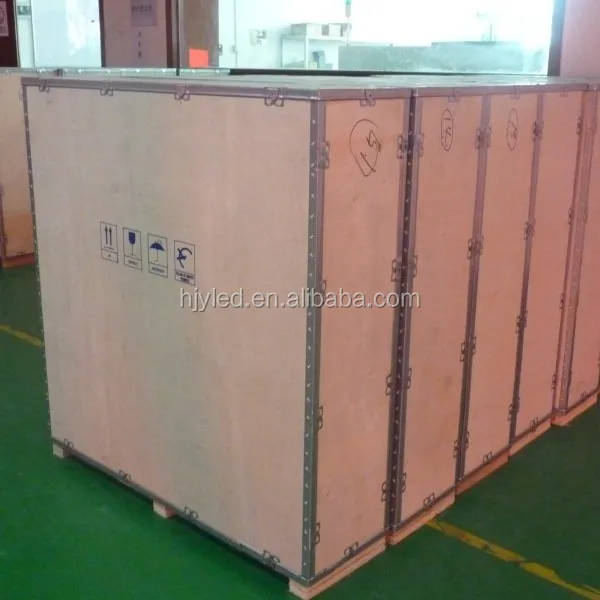

1) . Packing: Our goods are packed with wooden case, flight case or according customer's request

2) . Shipping: Shipped by air/ sea

Delivery

1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.

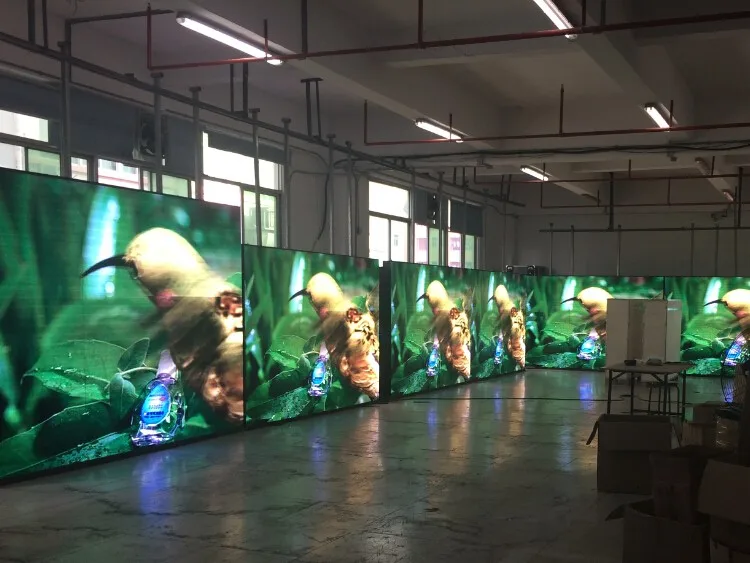

2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.

FAQ

1.What is the difference between real pixel LED display and virtual pixel LED display ?

With the virtual pixel technology, the led display sign will appear a more clear vision. Theoretically the resolution will be 4 times of a real pixel technology led display sign .The difference of a real a virtual pixel led display sign of LED display can be seen in the next pictures.

Shenzhen manufacturer p6 full color led display indoor



2.How do virtual LED display work?

Below you can clearly see how the virtual pixels are made, we surely recommend you a virtual led display sign , even so our new technology of Dot Matrix it’s still better than virtual pixels, because the three colors RGB are in the same dot or pixel, just like the SMD technology and also the Dot Matrix have a horizontal viewing angle of over 160 degrees. The virtual pixel led display sign have a horizontal viewing angle of upto 130 degrees.

Shenzhen manufacturer p6 full color led display indoor





3. What is the refresh rate for LED screens?

The refresh rate of a led display sign is the number of times in a second that the LED display hardware draws the data. This is distinct from the measure of frame rate in that the refresh rate for led display sign includes the repeated drawing of identical frames, while frame rate measures how often a video source can feed an entire frame of new data to a display.For example, most movie projectors advance from one frame to the next one 24 times each second. But each frame is illuminated two or three times before the next frame is projected using a shutter in front of its lamp. As a result, the movie projector runs at 24 frames per second, but has a 48 or 72 Hz refresh rate.

4. Increase refresh rate for decreasing LED screen flickering

On outdoor led display screen , increasing the refresh rate decreases flickering, thereby reducing eye strain. However, if a refresh rate is specified that is beyond what is recommended for the outdoor led display screen , damage to the display can occur.

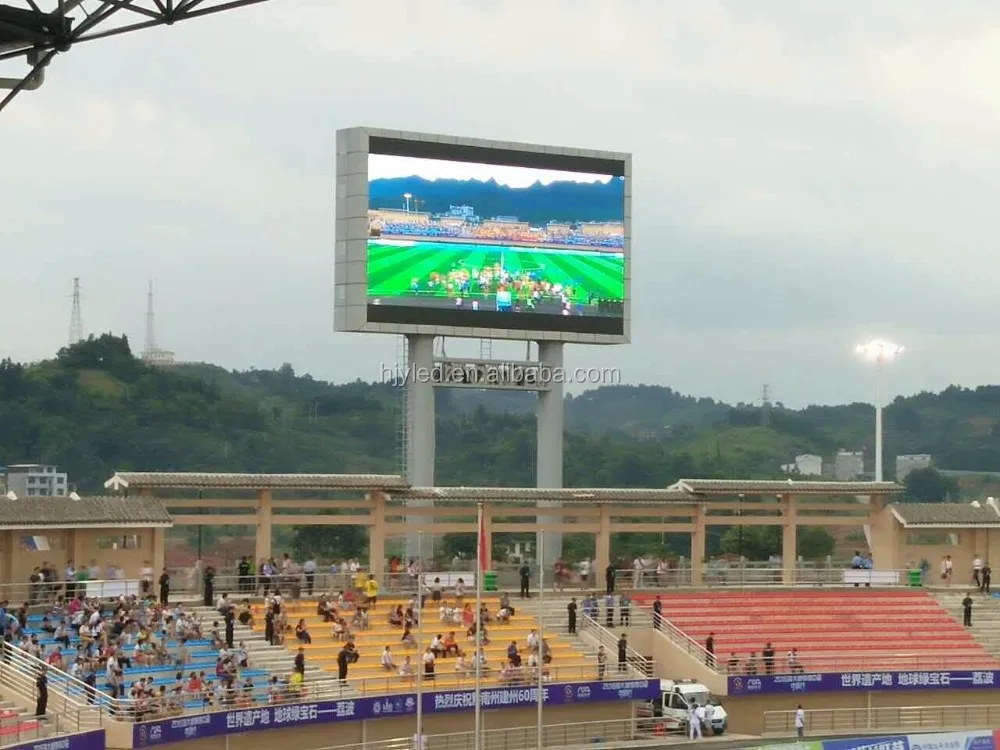

Normally our led display sign have a refresh rate of over 300Hz, which is more than 5 times the refresh rate of a normal cathode television which is 50Hz (PAL and SECAM) or 60Hz (NTSC). For football stadiums (stadium LED display and perimeter LED display ) our outdoor led display screen can reach a refresh rate of over 800Hz, which means that they won´t show any flickering when recorded with a video camera and broadcasted live on television.
